CX-CNC21 CNC Robot Luggage Machine
Model:CX-CNC21
CNC Robot Luggage Machine
Are you interested in our products?
Our experts can help you choose the right product for your process!
Contact a Mechanical Expert
Description
Advantage
Technical
Description

Designed for versatility, the CX-CNC21 CNC Robot Luggage Machine can accommodate a wide range of materials and sizes, easily adapting to different design requirements. Handling sheet cutting tasks with high speed and reliability, it can significantly reduce production time.

Advantage

1-automatic

2-easy operation

3-precise parts

4-Environmentally friendly



Technical Parameters
Name Parameter
CNC Controller SYNTEC/LNC CNC
Linear guide TBI/CSK
Lead screw TBI
Rack and pinion YYC/CHAOXU
X-axis reducer ZD/SHIMPO
C/B axis reducer Han's Motion/Laifual Drive
X-axis speed X 0-60000MM/MIN
Y-axis speed Y 0-60000MM/MIN
Z-axis speed Z 0-40000MM/MIN
X/Y/Z stroke 1480/1100/470MM
C-axis/B-axis stroke -400°~+400°/-120°~+120°
Lubrication system Automatic timing and quantitative lubrication of lubrication pump
Gas source 0.65-0.7MPA; 100L/MIN
Power supply 380V/6KW/10A
Yield 75-100PCS/H
Dimensions L2100*W2150*H2010MM
Weight 1.8T
Contact Form
If using the form to reach us, please expect a response with in 24 hours. Thank you.
Related Products
Luggage CNC Cutting Machine
CX-A22C Luggage CNC Cutting Machine is used for processing holes and grooves and cutting edges of non-metal shell products such as luggage.lt adopts a ten-axis cutting system for double stations CNC machine.
Semi-automatic Plastic Cutting Machine
This machine is used to cut the edges after luggage shell comes out of the vacuum forming machine.

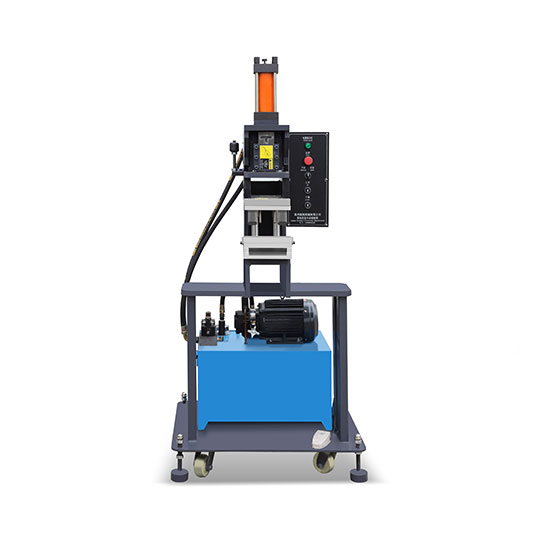

Plastic Hole Punch Machine
